Your benefits
-
Comprehensive offer
as the gear units offer finely stepped torques and gear ratios for use in potentially explosive atmospheres.
-
Easy combination

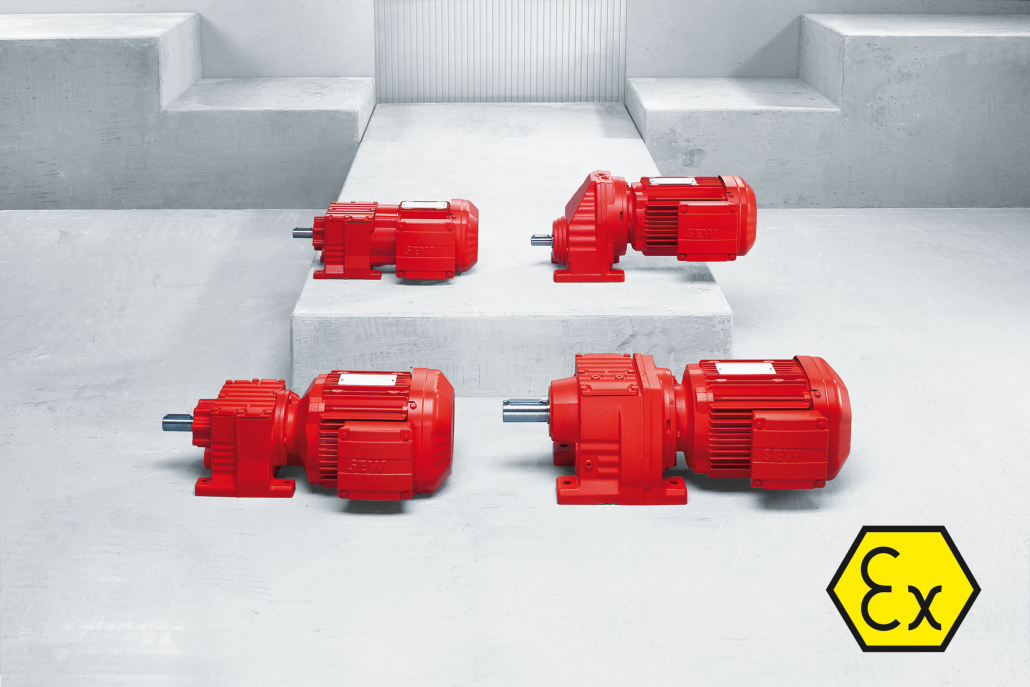

because you can easily combine an explosion-proof helical gear unit with an explosion-proof motor from our modular system.
Features
- 15 sizes
- Optimum ratio between performance and space requirements
- Finally stepped sizes and gear ratios
- Also available with reduced backlash
Technical Data
Sizes 07 / 17 / 27 / 37 / 47 / 57 / 67 / 77 / 87 / 97 / 107 / 127 / 137 / 147 / 167
| Gear unit ratio | i | 3.21 – 289.74 |
|---|---|---|
| Double gear unit reduction ratio | i | 90 – 27 001 |
| Max. output torque R07 – R167 |
Nm | 50 – 20 000* |
| Motor power range (Mounting via AM motor adapter) | kW | 0.12 – 90 |
|
||
